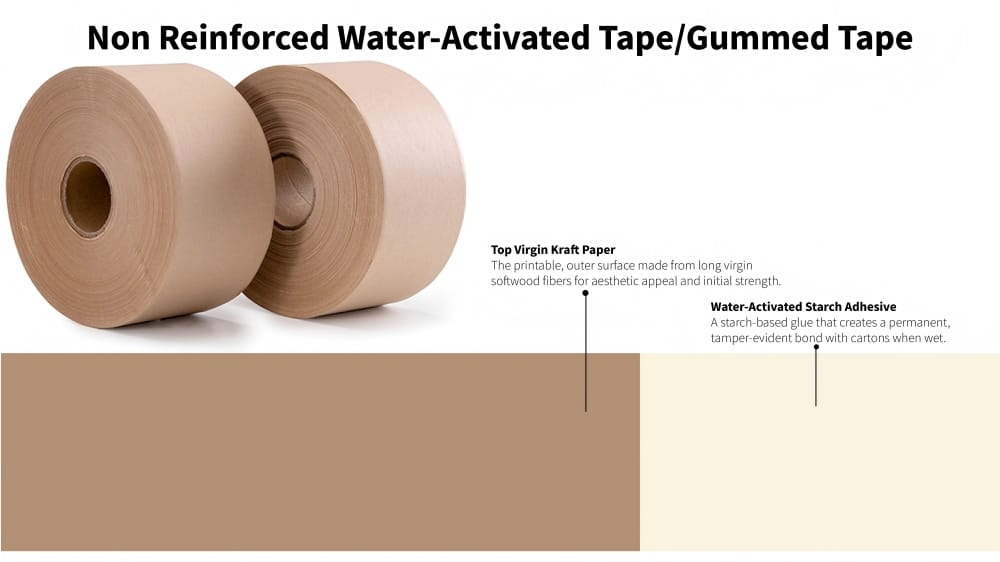

What is Non Reinfored Water-Activated Tape Construction Layers?
In the world of packaging, “simple” is often synonymous with “sustainable.” While reinforced tapes get a lot of attention for their fiberglass muscle, there is an unsung hero in the eco-friendly shipping world: Non-Reinforced Water-Activated Tape (WAT).
Non-Reinforced Water-Activated Tape (WAT) often called “gummed paper tape,” this material is the gold standard for brands looking to go 100% plastic-free. But what actually holds it together? Unlike its reinforced cousin, which is a sandwich of paper and fiberglass, non-reinforced WAT is a masterclass in minimalism.

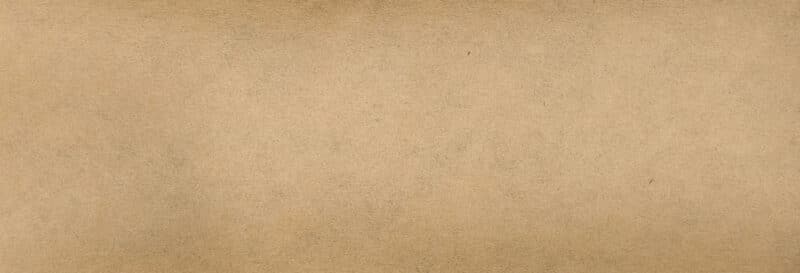

Layer 1: The Backing (Kraft Paper)
The top visible layer of the Non-Reinforced Water-Activated Tape (WAT) is a single ply of high-density Kraft paper.
-
The Material: This is typically made from long-fiber softwood pulp, which gives the paper its surprising tensile strength. Manufacturers often offer this in two varieties: Natural (brown, unbleached) or White (bleached).
-
Virgin vs. Recycled: For maximum strength, Virgin Kraft is often used because the wood fibers haven’t been shortened by previous recycling processes. However, Recycled Kraft options are widely available for brands prioritizing a circular economy.
-
The Function:
-
Structure: It provides the physical barrier that seals the box flaps.
-
Printability: Because there is no cross-hatch pattern of fiberglass underneath, the surface is perfectly smooth. This makes non-reinforced WAT the best candidate for crisp, detailed custom branding or QR codes.
-
Hand-Tearability: This is the defining feature of this layer. Without synthetic fibers to stop it, you can tear this tape by hand. This improves safety for the receiver (no box cutter needed) and makes opening the package a frustration-free experience.
-

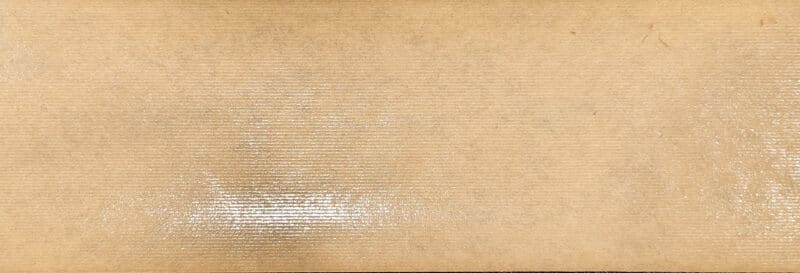

Layer 2: The Adhesive (Starch-Based)
Underneath the paper backing lies the secret to WAT’s legendary performance: a dry, dormant adhesive layer.
-
The Material: This adhesive is almost exclusively plant-based, typically derived from corn starch or potato starch. It is chemically engineered to be hydrophilic (water-loving).
-
The Activation: In its dry state, the adhesive is non-tacky and smooth. It only “wakes up” when passed over a wet brush or sponge (usually via a tape dispenser).
-
The Function:
-
Capillary Action: Unlike plastic tape, which just sits on the box, this starch adhesive soaks into the carton’s fibers.
-
The “Weld”: As the water evaporates, the starch hardens and effectively fuses the tape to the box. The tape and the carton become one single piece of material.
-
Tamper Evidence: Because the adhesive bonds so aggressively to the carton, you cannot peel this layer off without destroying the box surface. This provides immediate, visible proof if a package has been tampered with.
-
The Missing Layer: Why “Less” is More
To truly understand non-reinforced WAT, you have to look at what isn’t there.
Reinforced tape has a middle layer of fiberglass or polyester mesh laminated between two sheets of paper. Non-reinforced WAT removes this synthetic layer entirely.
Why does this matter?
-
Direct Recycling (Repulpability): Because the tape is made only of paper and starch, it is 100% repulpable. When a customer throws the box in the recycling bin, they don’t need to peel the tape off. The entire package breaks down into paper pulp at the recycling facility, unlike reinforced tape where the fiberglass creates waste byproducts (screenings) during the pulping process.
-
Biodegradability: If the tape ends up in a landfill or a home compost (check specific certification), it breaks down naturally without leaving microplastics behind.
When Should You Use It?
While the construction is ingenious, it has physical limits. Without the fiberglass reinforcement, the tape has lower tensile strength. It is best suited for:
-
Lighter Shipments: Ideally packages under 10–15 lbs.
-
Unitized Loads: Boxes that will be stacked on a pallet and shrink-wrapped, rather than shipped individually via parcel carriers.
-
Eco-Conscious Brands: Companies whose primary value proposition is sustainability.
Conclusion
Non-reinforced Water-Activated Tape proves that you don’t need complex synthetic materials to create a secure seal. By combining a simple Kraft paper backing with a powerful starch adhesive, this tape offers a mono-material solution that secures your products and your commitment to the planet.
