Water Activated Tape Case Sealer Machines
Industrial Packaging Automation for Secure, Sustainable & High-Speed Box Sealing
Product Comparison
| Product | Best For | Key Feature | Speed |
|---|---|---|---|
| Case Erector + Bottom Sealing | Starting a new packaging line | Bottom-sealing up to 15 boxes/min | Up to 15 boxes/min |
| Top Sealer + Flap Folding | High-volume uniform runs | Hands-off folding and sealing | Up to 12 boxes/min |
| Random Size Sealer | E-commerce fulfillment | Auto-sensing box dimensions | Up to 10 boxes/min |
| Semi-Auto Sealer | Growing operations | Manual size adjustment | Up to 6 boxes/min |
Why Choose Water Activated Tape Case Sealers?
🔒
Tamper-Evident Security
Water-activated tape bonds permanently to cardboard, showing clear signs of interference. Cannot be removed without visible damage.
🌱
Eco-Friendly & Sustainable
Paper tape is fully recyclable and compostable. Reduces plastic waste and supports your sustainability goals.
💰
Labor Cost Reduction
Automated sealers need 1 operator vs. 3-4 for manual taping. Typical ROI within 12-18 months.
⚡
High Throughput
Automatic models process up to 15 boxes per minute. Significant improvement over 3-4 boxes/min manual operation.
📦
Reduced Tape Waste
No edge tape peeling or re-taping needed. Reduces tape consumption by approximately 30%.
🛫
Better Box Integrity
Superior hold through shipping, reducing product damage claims and customer complaints.
Our Water Activated Tape Case Sealer Products

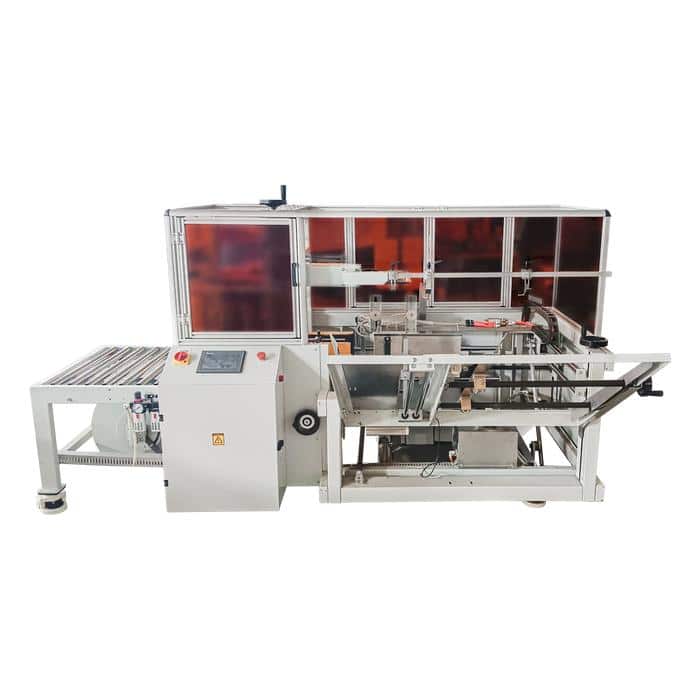

Automatic Case Erector with Water Activated Tape Bottom Sealing
Best for: Starting a new packaging line
Automatically forms and seals the bottom of cartons using water activated tape. Ideal for high-volume production lines requiring consistent, secure seals.
Specifications:
- Speed: Up to 15 boxes/minute
- Box size range: Customizable
- Tape width: 50-75mm
- Power: 380V 3-Phase (customizable)

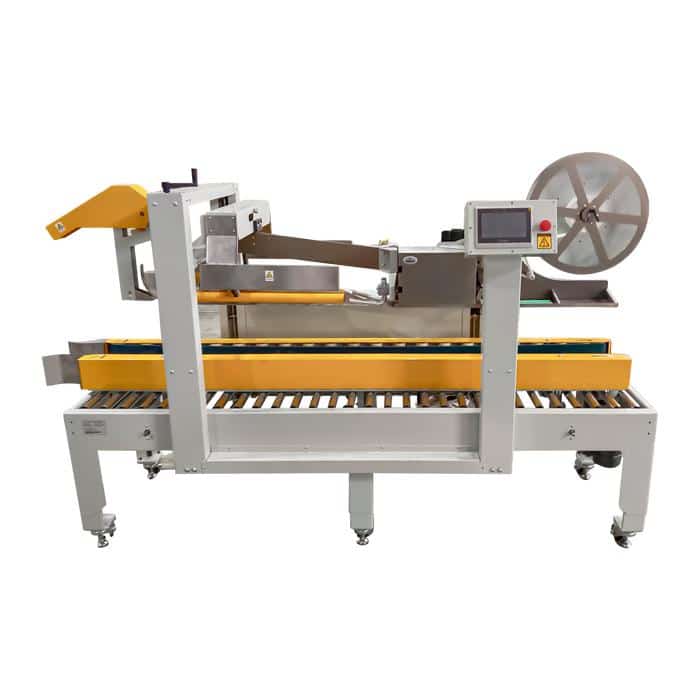

Automatic Water Activated Tape Top Case Sealer with Flap Folding
Best for: High-volume uniform runs
Fully automatic top sealing with integrated flap folding mechanism. Hands-off operation for seamless production workflows.
Specifications:
- Speed: Up to 12 boxes/minute
- Flap folding: Automatic
- Tape width: 50-75mm
- Power: 380V 3-Phase (customizable)

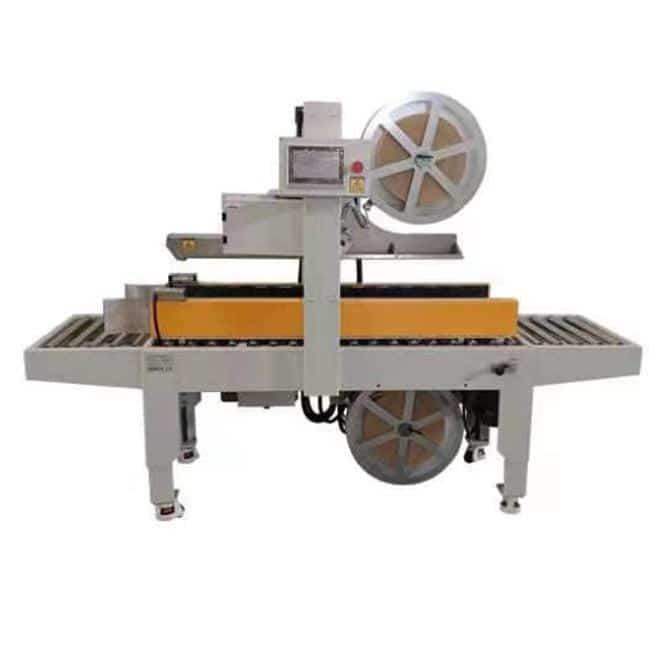

Fully Automatic Random Size Water Activated Tape Case Sealer
Best for: E-commerce fulfillment
Intelligent auto-sensing system automatically adjusts to different box heights and widths. Perfect for mixed-SKU fulfillment operations.
Specifications:
- Speed: Up to 10 boxes/minute
- Size sensing: Auto-detect
- Tape width: 50-75mm
- Power: 380V 3-Phase (customizable)

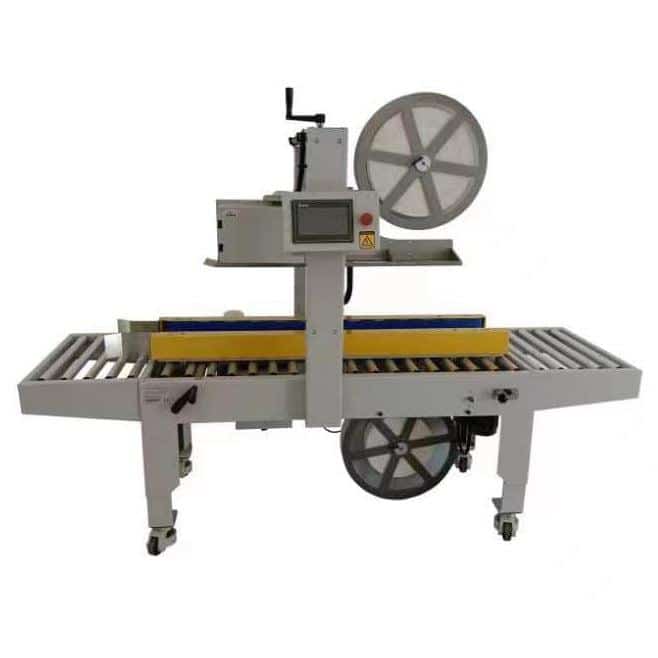

Semi-Automatic Water Activated Tape Case Sealer (Manual Adjustment)
Best for: Growing operations
Manual size adjustment with industrial-grade construction. Affordable entry point for businesses transitioning from manual to automated packaging.
Specifications:
- Speed: Up to 6 boxes/minute
- Size adjustment: Manual
- Tape width: 50-75mm
- Power: 220V Single-phase available
Frequently Asked Questions
What’s the difference between water-activated tape and pressure-sensitive tape?
Water-activated tape (WAT) uses a plant-based adhesive that bonds chemically with cardboard when moistened, creating a permanent, tamper-evident seal. Pressure-sensitive tape (acrylic/duct tape) uses synthetic adhesives that stick on contact but can be peeled off. WAT provides superior security, sustainability, and box integrity compared to pressure-sensitive alternatives.
How long does it take to set up and install the machine?
Typical installation takes 1-2 days including machine setup, calibration, and operator training. We provide detailed installation guides and on-site training options available for additional regions.
What maintenance is required for Water Activated Tape Case Sealers?
Regular maintenance includes daily inspection of tape moistening system, weekly cleaning of tape application heads, and periodic lubrication of mechanical components. We provide comprehensive maintenance manuals and offer service contracts for customers needing scheduled maintenance support.
What’s the typical ROI timeline?
Most customers see ROI within 12-18 months through combined labor savings (reduced operators), reduced tape waste, and decreased product damage claims. Actual timeline depends on production volume and current manual packaging costs.
Can these machines handle different box sizes?
Yes! Our Random Size Sealer automatically adjusts to different dimensions. Other models require manual or automatic adjustment for different box sizes. Let us know your typical box size range and we’ll recommend the best model for your needs.
What power requirements are available?
Automatic industrial models typically require 380V 3-phase power. Semi-automatic models are available in both 380V 3-phase and 220V single-phase configurations. We can discuss your facility’s power availability and provide appropriate machine specifications.
